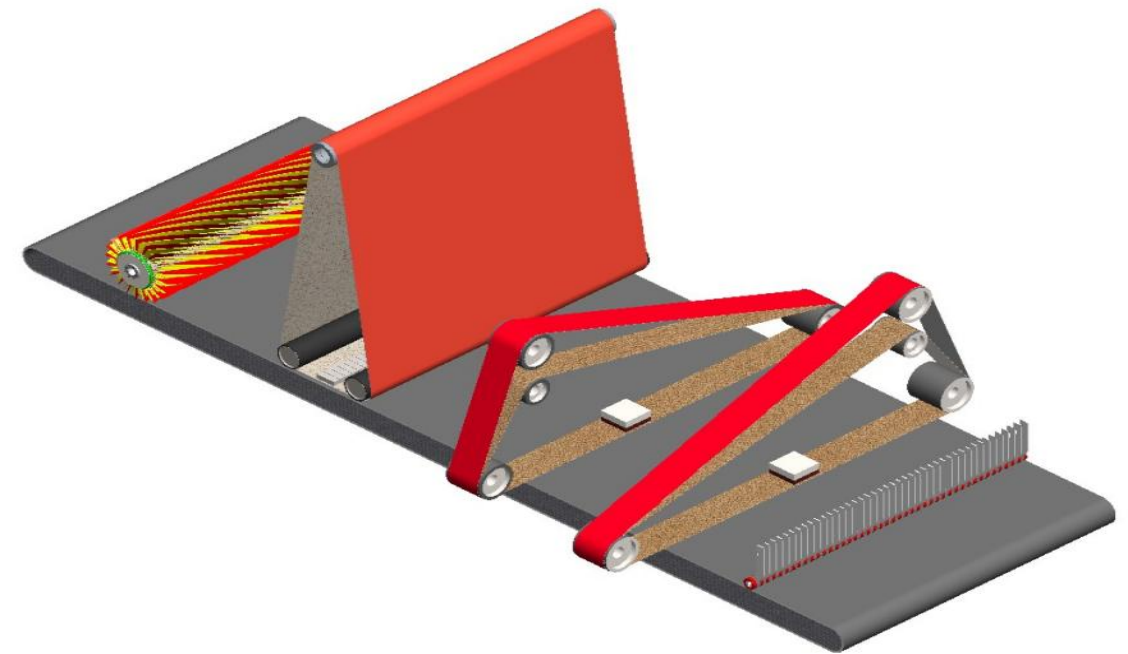

CNC Flat Sand Press S7-F2Q1L1

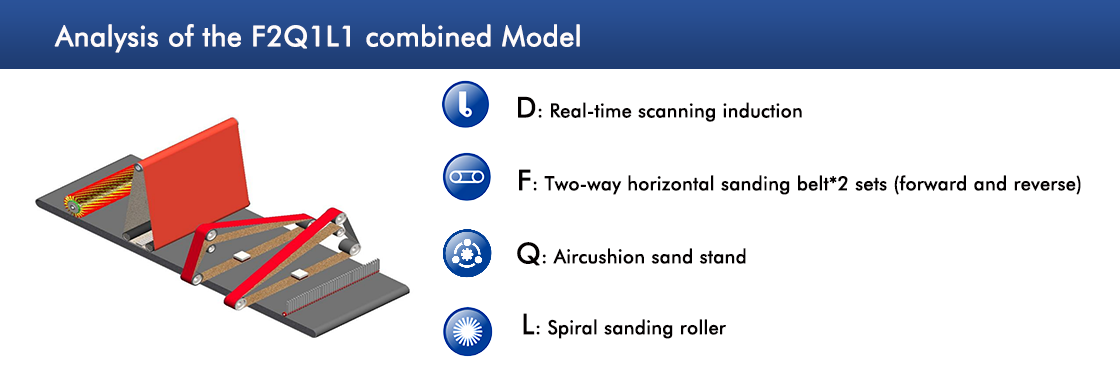

Combined Model

S7(F2Q1L1)

Working Width

30–1300 mm

Cross Belt Size

200×4496 mm

Minimum Workpiece Length

Over 480 mm

Sanding Roller Motor Power

2.2 KW

Workpiece Thickness Range

6–100 mm

Sanding Roller Lifting Motor

0.25 KW

Conveying Power

2.2 KW

Sanding Roller Oscillating Motor

0.12 KW

Conveying Speed

1–10 m/min

Main Frame Lifting Motor

1.1 KW

Sanding Frame Motor Power

15 KW

Compressed Air Consumption

1.0 m³/min

Sanding Frame Abrasive Belt Size

1320×2600 mm

Dust Extraction Air Volume

10000 m³/h

Cross Belt Motor Power

1.5–2 KW

Working Air Pressure

0.6–0.8 MPa

Transverse Abrasive Belt Size

200×4770 mm

Overall Dimensions

L4200 mm × W2130 mm × H2080 mmm

Weight

3000 Kg

Total Installed Power

23.87 KW
