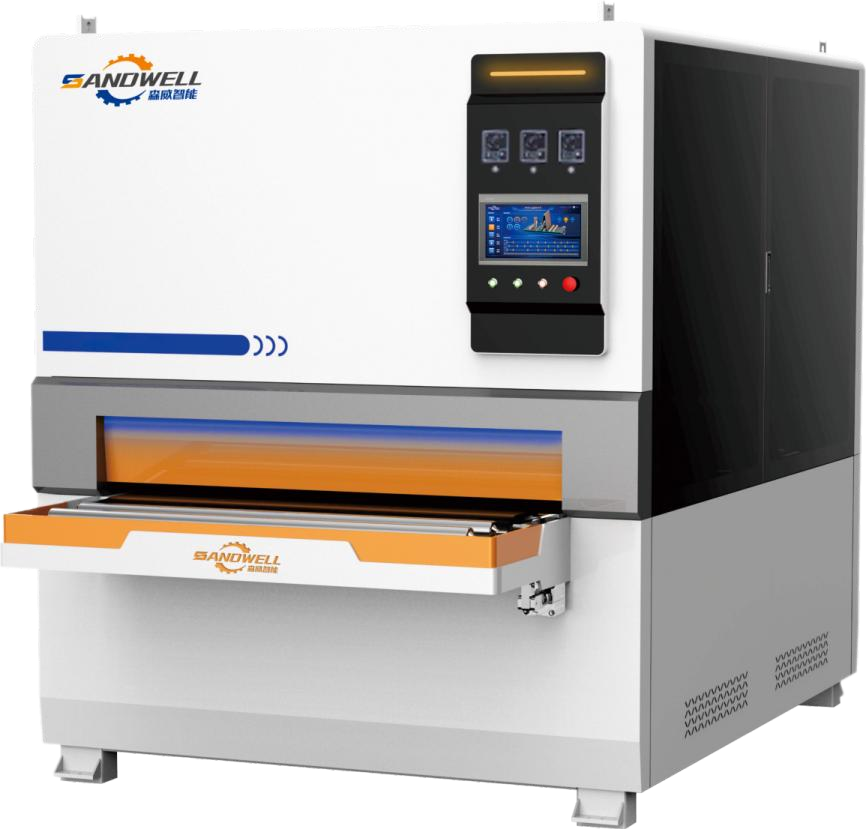

Equipment characteristics：
(1) This series has a wide sanding processing range. Planar workpieces within a height of 100mm and a width of 1300mm, wood veneer pasted and primer coated, can all be sanded. For example, it can be used for sanding and polishing in multiple industries such as solid wood furniture, solid wood doors and windows, and kitchen cabinets and wardrobes.
(2) The system uses a PLC to connect with a HD touch screen and a frequency converter, enabling intuitive display, operation, adjustment, maintenance, and indication.
(3) The feeding position is automatically sensed, which effectively protects the head and tail of the workpieces, no sand damage, no sand leakage.
(4) The whole frame structure profile welding, ensuring the stable operation of the equipment and the sanding accuracy.

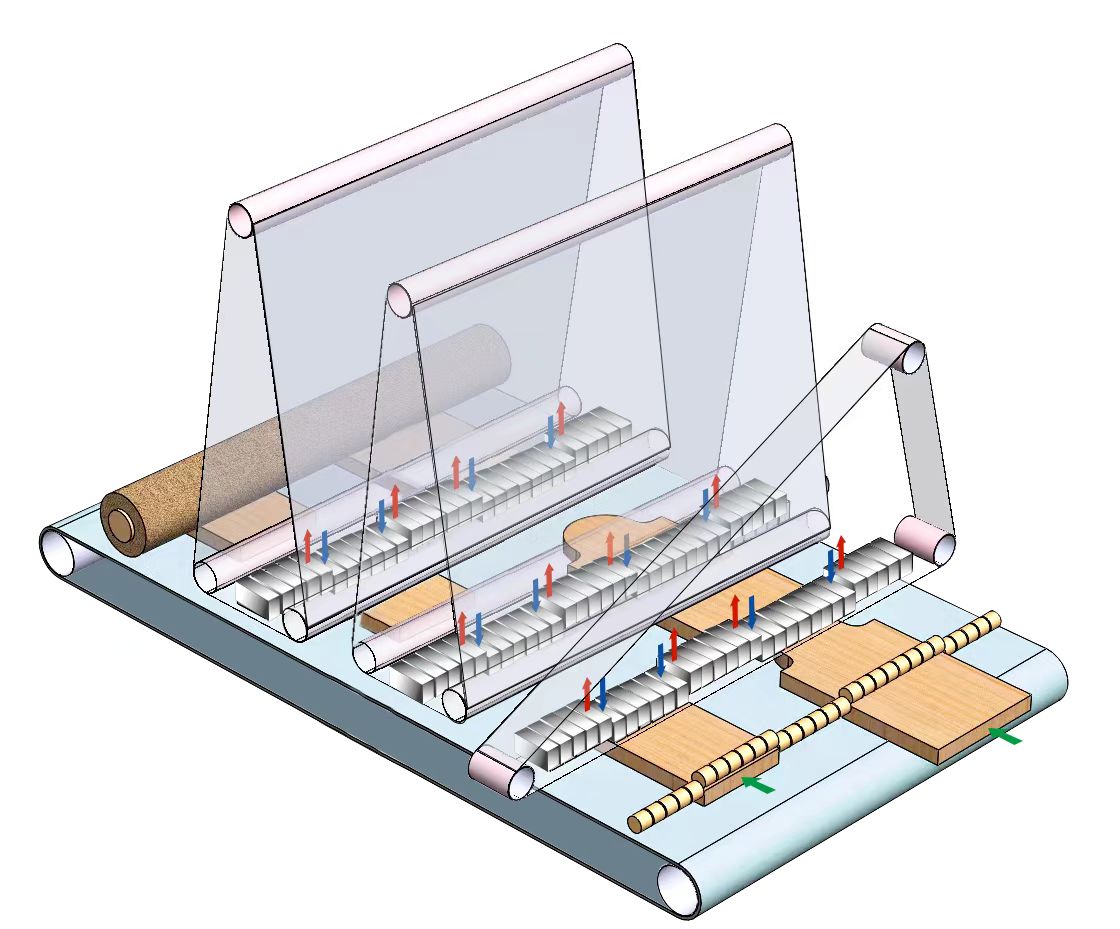

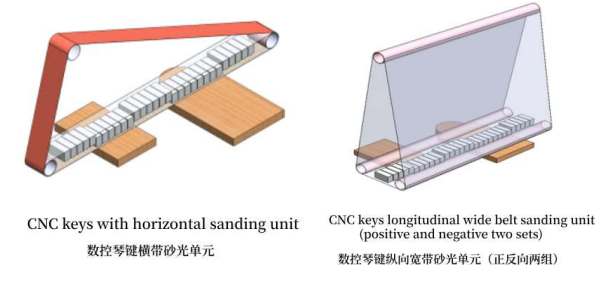

(5) The sanding components are produced in a modular way, with independent frequency control, independent lifting control. According to the different sanding requirements of customers' products, the process configuration and layout of the equipment components can be customized to achieve the best sanding effect.
(6) The conveying workbench is fixed, and the sanding unit conducts overall floating sanding. The material pressing is independent, which is convenient for multi-machine automated connection.
Mechanical configuration specification：
● With 72 sets of feeding induction units, it can accurately detect the different thicknesses of irregular surfaces through contact - type detection, featuring a low failure rate and a longer service life. It can also sense the processing size and position of workpieces in real - time.

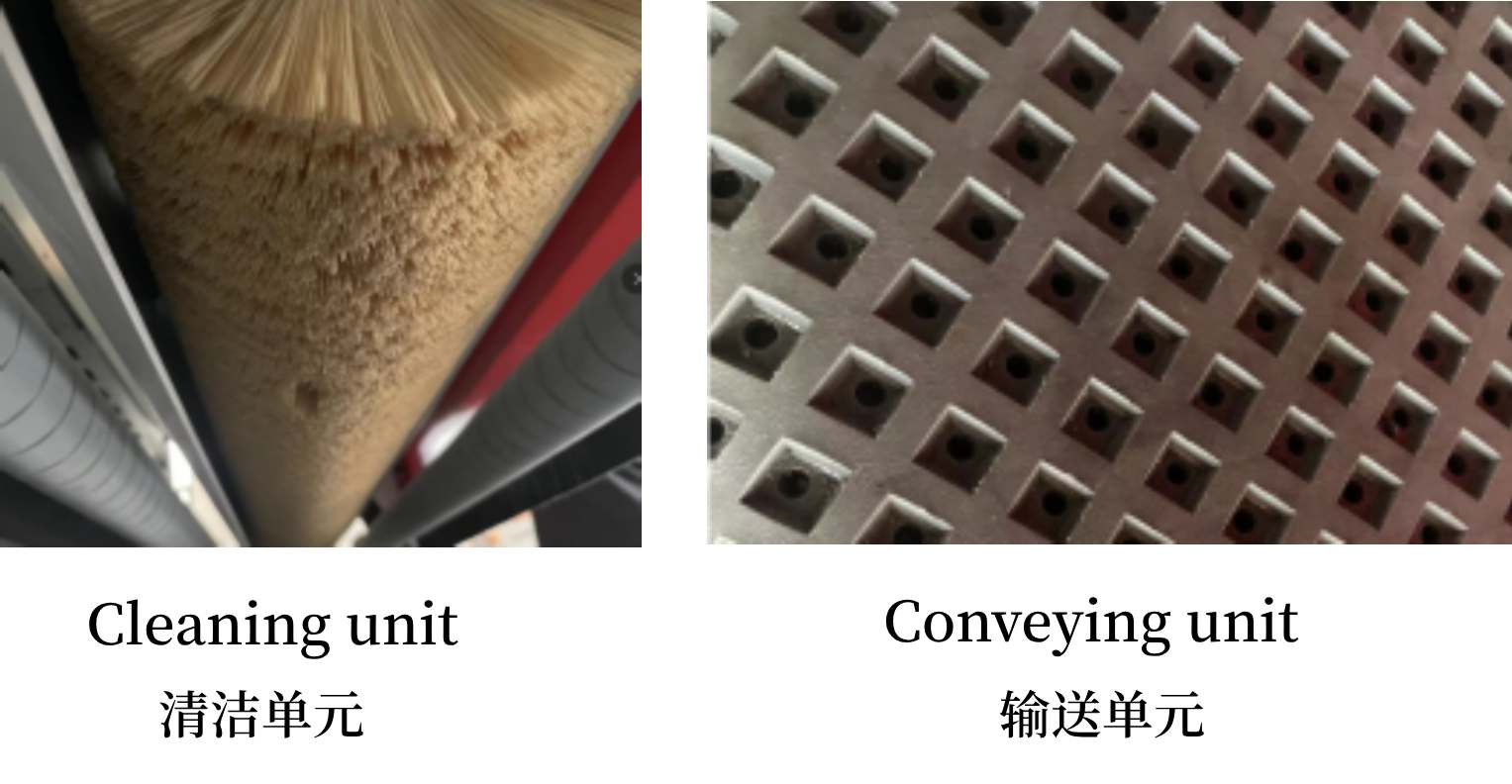

● Cleaning unit：To clean the sand belt and brush roller surface dust, ensure the surface clean.
● Conveying unit：9 mm rubber diamond shaped belt durable and non-slip.Transfer table vacuum adsorption. During the operation of the equipment, the surface of the conveyor belt is clean, and the bottom of the board is clean.
