Principles and Applications of Sanding Machines

2025-05-08

1. Working Principle of Sanding Technology

Sanding machines operate based on the principle of frictional grinding. Their core components are sanding belts or grinding wheels coated with high-hardness abrasives. Once activated, the motor drives these components to rotate at high speed. When the operator brings the workpiece close, the abrasives strongly rub against the surface of the workpiece, removing uneven parts such as burrs and protrusions, and grinding the surface to reduce roughness, making it smooth and flat.

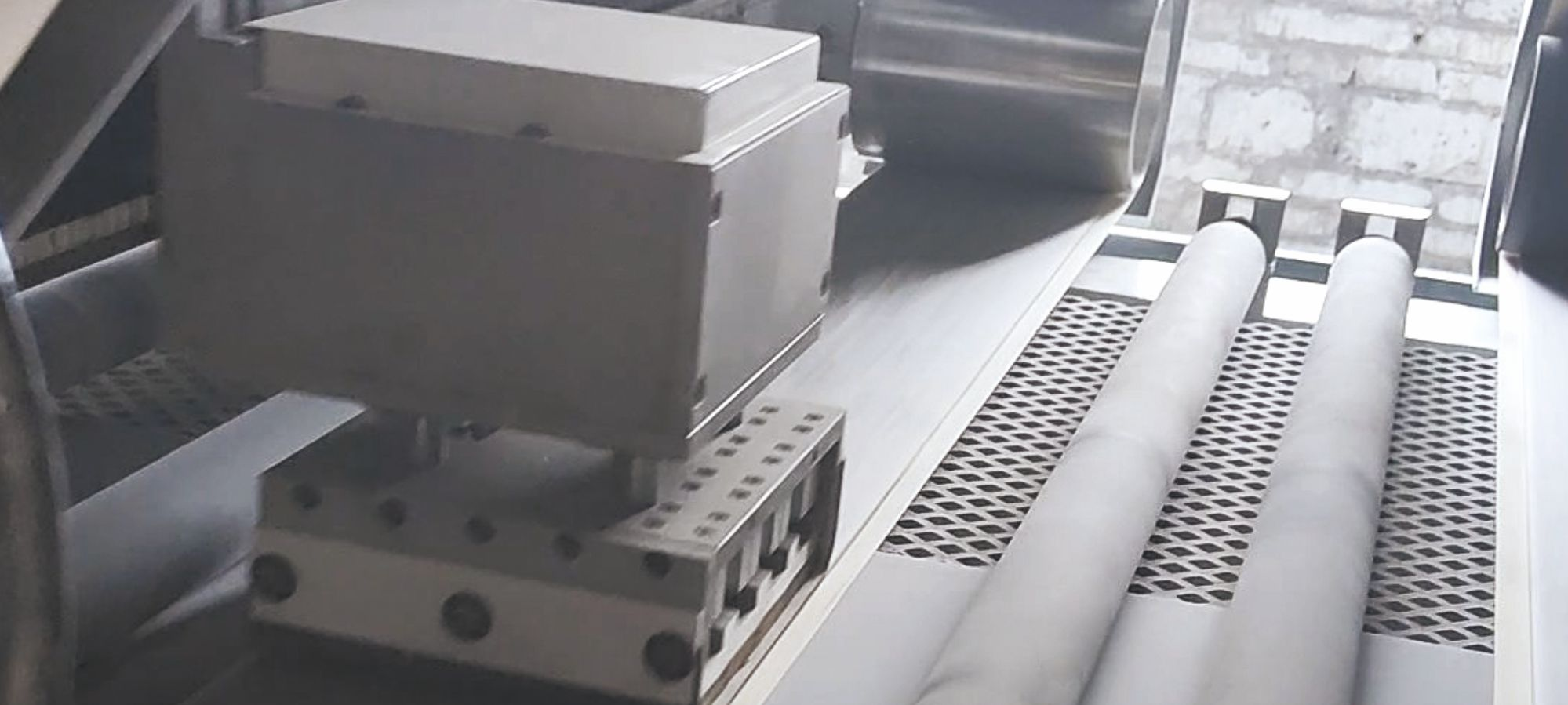

Linear Profile Sanding Machine

Take the common wide-belt sanding machine as an example, which consists of a sanding frame, a conveyor belt, and a transmission device. The conveyor belt smoothly transports the workpiece to the bottom of the sanding frame, and the sanding belt on the frame is driven by the motor to run in a loop. The moment the sanding belt touches the workpiece, the abrasives start cutting and polishing. Sanding machines are equipped with pressure adjustment devices, which can adjust the pressure of the sanding belt on the workpiece according to the material and thickness of the workpiece, as well as the requirements for the sanding effect. A higher pressure results in a stronger cutting action and faster sanding, but it is prone to over-sanding; a lower pressure enables fine and slow sanding, which is suitable for workpieces with high surface quality requirements.

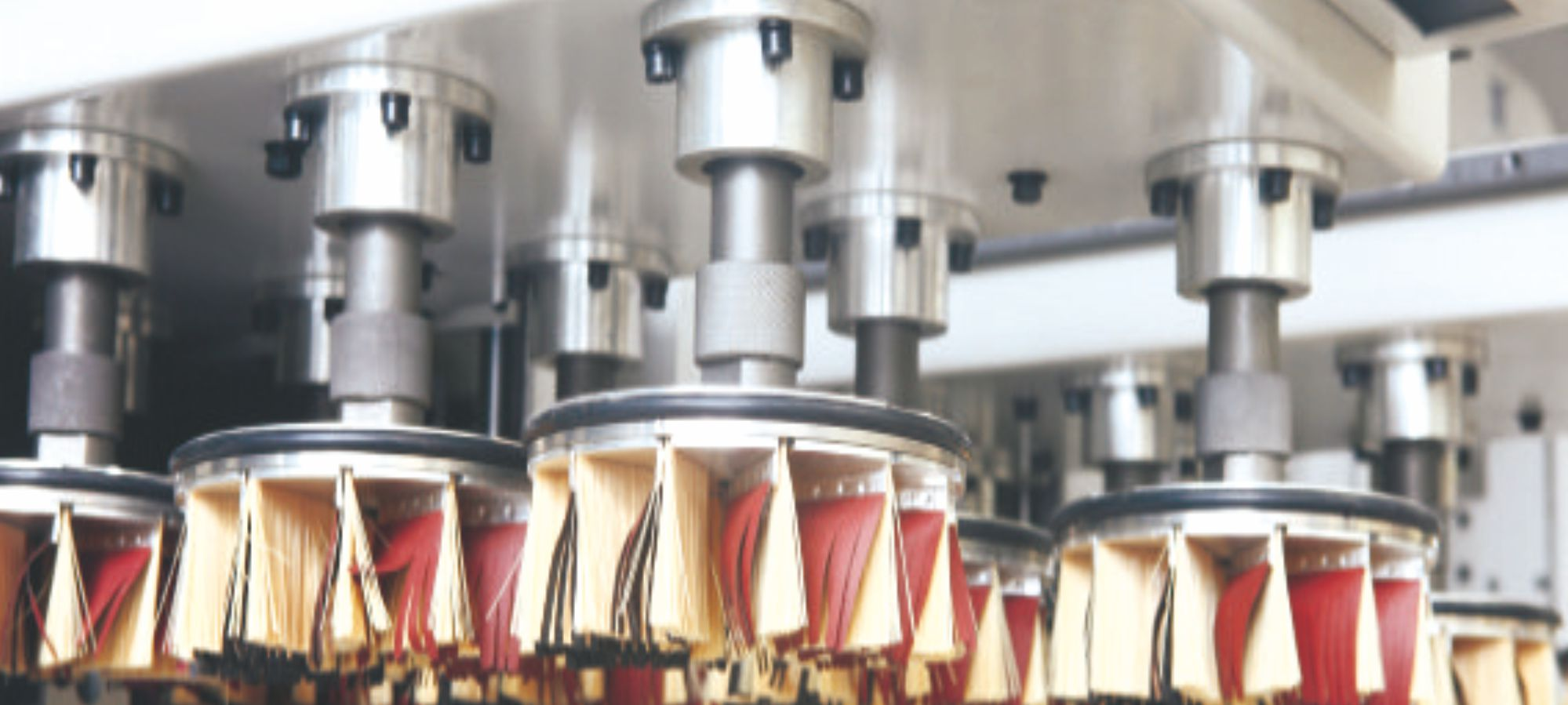

Automatic Pressure Sanding Machine


2. Extensive Application Areas

Sanding machine equipment is widely used in various industrial fields.Today, let's talk about sanding machines in the woodworking industry.​

Woodworking Industry: Sanding machines are widely applied in the woodworking industry. In furniture manufacturing, after cutting and splicing, the surface of the wood is uneven. Sanding machines can polish the surface of furniture to make it smooth and delicate, laying a foundation for painting and coating, and enhancing its aesthetic appeal and texture. During the production of wooden floors, sanding machines can precisely control the surface roughness, ensuring a proper fit during installation, comfortable walking, and enhancing wear resistance and stain resistance.​

In the woodworking industry, as a core surface treatment device, sanding machines play a crucial role throughout the key processes from raw materials to finished products, significantly improving the quality and performance of various wooden products through refined polishing. The following analyzes the important applications of sanding machines from different sub-fields:​

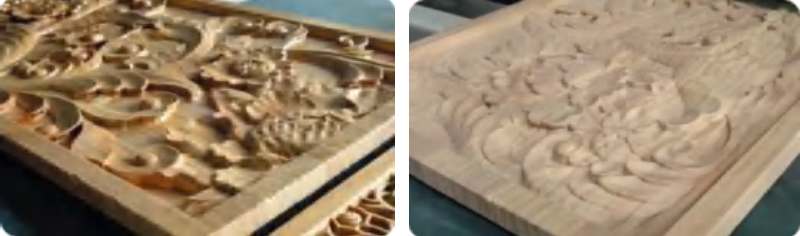

Carved Wooden Crafts

Carved wooden crafts like ornaments, Buddha statues, and flower-and-bird reliefs often have rough surfaces with visible knife marks. Sanding machines use a two-step process: coarse sandpaper first to smooth out major unevenness, followed by fine sandpaper for a polished finish. This not only refines the carved details but also accentuates the wood's natural grain and color, adding a smooth, warm feel.  After sanding, its scales and claws stand out more vividly, and the wood's ox-hair patterns become more distinct, enhancing the overall aesthetic.​

Wood Linear Shaping Sander,

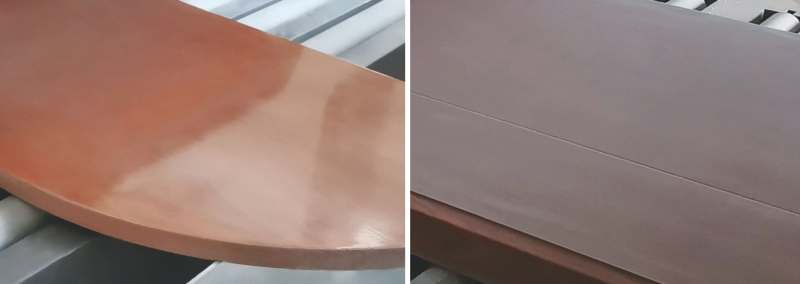

Solid Wood Door and Window Manufacturing

The flatness of solid wood door and window components is crucial for both sealing and aesthetics. After assembly, sanding machines precisely control force and angle to polish door frames and panels. This process smoothes out joints and uneven areas, ensuring a tight seal that blocks wind, rain, and noise. The smooth surface also promotes better paint adhesion, reducing drips and bubbles. Moreover, it resists dust and dirt, simplifying maintenance and extending lifespan. For instance, a high - end villa's solid wood entrance door, when sanded, has a more lustrous paint job, smoother operation, and enhanced sealing.​

Wood Linear Shaping Sander


Musical Instrument Manufacturing

In stringed instrument manufacturing, like guitars, guzhengs, and violins, sanding machines are crucial for wood surface treatment. For guitar panels, they precisely control thickness to adjust resonance and enhance tone. Parts like the neck and fingerboard are smoothed for easy play. In painting, the smooth surface from sanding helps paint adhere evenly, creating an attractive finish. This makes the instrument both functional and artistic. A hand - made classical guitar, after sanding, has sleek lines, a shiny paint job, and great sound under stage lights.
